The drain hose is available in different lengths, and universal sizes are 1 to 1¼ inches in diameter. The length of the drain hose depends on how far the washer is from the stand pipe or laundry sink.
What size is washing machine waste pipe?
Drain and Trap Requirements A 2-inch drain pipe is required for all washing machines. The former requirement of 1 1/2-inch pipe is not enough to handle the fast drainage of modern washers. As with all plumbing fixtures and appliances, a washing machine drain pipe must also contain a P-trap.
What size is a washing machine fitting?
Connectors, valves / taps, hoses and fittings for plumbing in your kitchen appliances. Washing machine and dishwasher inlet hose connectors use a 3/4 inch BSP thread (measures about 1 inch with a ruler), see BSPT link at bottom of page for more information about British Standard Pipe Thread sizes.
Can you plumb a washing machine into a soil pipe?
Both soil and waste pipes will run from your toilet, sinks, shower, washing machine, urinal, bidet and any appliance that voids water and join the soil stack. The stack will run directly into your underground drain.
What hoses come with a washing machine?
Your new washer should come with water supply hoses and all other necessary washing machine parts. Usually these hoses are stored in the drum of the machine. When connecting the water supply hoses, you can usually screw them in by hand, but use mole grips if you have trouble. Don’t overtighten.

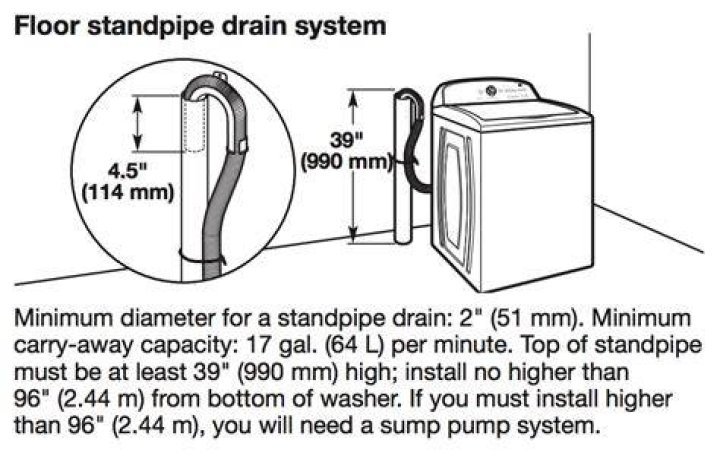

How big of a pipe do you need for a washing machine?
What Size Pipe Is Needed for a Washing Machine? 1 Stand Pipe. The stand pipe, which taps into the water supply drain line, should be 2 inches in diameter. 2 Drain Hose. The drain hose, which drains the water out of the washer, can be connected to an existing laundry sink or into the stand pipe. 3 Hot and Cold Hoses. 4 Installing. …
What kind of waste pipe does a washing machine use?
The 3 washing machines we have had all used the same style of waste pipe as you have. Some come with a connection that can be fitted to sink wastes with a washing machine connection. Just a length of tube on the wall with pipe clips. Elbow, pipe through wall, another elbow directing the flow to the drain.
Where are the pipes and hoses on a washing machine?
The pipes and hoses are behind the washing machine. A washing machine is connected to a drain hose and to hoses that connect to the hot and cold water supply. The drain hose is connected to a stand pipe attached to the water drainpipe.
What are the different sizes of waste water pipes?
The pipes for each system aren’t the *exact* same size and thus aren’t directly compatible. Common Waste Pipe Sizes 21.5mm – Used for overflows, commonly seen attached to water tanks in lofts and from cisterns. 32mm – Found under small hand basins and other low volume outlets. 40mm – Used under kitchen sinks and bathroom showers/baths.
