Having the holes facing up is just the most effective plan for the systems that I’ve designed. Regardless of your preference for perforation placement, I always recommend installing clean-outs in strategic locations for clearing the pipe should it become blocked or sluggish.
Does drain tile have holes?

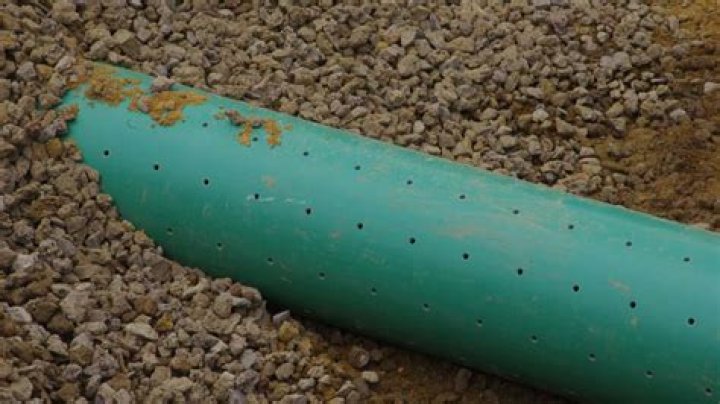

Drain Tile is perforated (has holes) to allow water a point of entry. Immersed in a bed of stone, which facilitates drainage to the piping. Stone type varies, but 3/4” washed (clean) gravel promotes the best water flow.
How far down does drain tile go?
Because the drain tile will be installed at a height that is lower than the bottom of the concrete slab or crawlspace floor, the trench must be at least 10 inches deeper than the top of the footing or slab.
What type of pipe is used for leach field?
PVC pipe
After leaving the septic tank, the effluent passes into the leach pipes, trickles out of holes in the pipes, then percolates downward through gravel and sand, then into the soil. Leach pipes are usually made of perforated PVC pipe.
When should you use a perforated drain pipe?
If you’re creating a new garden landscape, make sure that you install a good drainage system. Hence, use perforated pipes to absorb all the excessive water and drain it out of the way. By installing the pipelines in the ground, you can also collect the rain water into a reservoir and then use it for irrigation.
How big are the holes in perforated pipe?
b) Circular perforations shall be 1/4 ± 1/16-inch diameter holes arranged in rows parallel to the axis of the pipe. Perforations shall be evenly spaced along each row such that the center-to-center distance between perforations is not less than eight times the perforation diameter.
How do you tell if your drain tile is clogged?
Sometimes the signs of a clogged drain tile can be noticeable. You may see that water is pooling against your home, suggesting that your tiles are failing. On the interior, water may not be properly channeled, leaving you with a wet basement. If you have a sump pump, check the pit after heavy rainfall.
Is it better to have a hole up or down in a drain pipe?
Either way, though, when silt and debris fill the pipe to the level of the perforations—essentially half the diameter of the pipe—it can no longer take on water and no longer is effective for drainage. So there are good arguments for both methods. Having the holes facing up is just the most effective plan for the systems that I’ve designed.
Is it better to put holes up or down a French drain?
If your French drain is an interceptor and you want to limit the uptake of water from below, then the faster route would be with the holes down, but still requires hydraulic gradient to push water into the pipe. In my humble opinion, having the holes on top is the better of the choices. RE: Drain Pipe Perforations – Up or Down?
Why do I have a hole in my water pipe?
Even when placed in a ground gutter as described above, the pipe fills with groundwater more quickly. When more water enters one area than another, it flows to another area of the pipe and drains away. This would seem to work best in a French drain system where excess water drains to a sump pit to be pumped out.
Where does water go when there is a hole in the wall?
With holes down, if theyu get silt up that high, water can still find it’s way into the drainage chamber due to hydrostatic pressure and it can then find it’s way downhill. It’s all about giving the water someplace to go, other than in your cellar.
