Use a multimeter With your multimeter set to ohm, or “Xl1” if there are multiple ohms on your meter, insert one of the probes into the wire connector containing the white wires. Touch the other end to the remaining blue, red, and/or yellow wires attached to the ballast.
How long does a UV ballast last?
According to the Certified Ballast Manufacturers Association, the average Magnetic ballast lasts about 75,000 hours or 12 to 15 years with regular use. In contrast, the Electronic ballast can last up to 20 years.
Can you use a fluorescent ballast for an ultraviolet or germicidal bulb?
In many cases, a fluorescent ballast can run a range of UVC light bulbs. In most cases, the germicidal bulbs the fluorescent ballast is compatible with will not be on the spec sheet.
How do electronic ballasts work?
Working Principle of an Electronic Ballast Electronic ballast takes supply at 50 – 60 Hz. It first converts AC voltage into DC voltage. Once the discharge process is started, the voltage across the lamp is decreased below 230V up to 125V and then this electronic ballast allows limited current to flow through this lamp.
How do I know if a ballast is bad?
2. Look for warning signs that the ballast is failing.
- Buzzing. If you hear a strange sound coming from your bulbs or light fixture, like a buzzing or humming noise, that’s often a sign your ballast is going.
- Dimming or flickering.
- No lights at all.
- Changing colors.
- Swollen casing.
- Burn marks.
- Water damage.
- Leaking oil.
Do UV lights need a ballast?
The uvc light ballast ramps up the input voltage and has an output voltage high enough to spark the lamp. A ballast is needed due to the construction of the lamps, they have negative resistance between the two electrodes. Additionally, a large voltage difference between the electrodes is needed to spark the lamp.
How often should a UV light be changed?
every 9000 hours
Typically, a UV lamp being used primarily to disinfect the air circulating through a home or small office should be replaced every 9000 hours or approximately every 12 months.
Does a UV light need a ballast?
Medium pressure UV lamps do not have a filament. They utilize a high voltage charge to ionize a mercury/gas mixture in the lamp creating a plasma that emits UV light. This system requires a high voltage/amperage power supply (typically a magnetic ballast transformer with a high voltage capacitor bank).
Can I put a UV bulb in a regular lamp?
In most cases, for regular fluorescent ballasts, manufacturers don’t list compatible UV lamps on their spec sheets. For a regular G4T5 lamp, many ballasts that run F4T5 bulbs will work. But for complicated, high-output, amalgam UV lamps, only a few manufacturers make ballasts for those and they are highly specialized.
How does a ballast in a light bulb work?
The ballast gives the lamp the amount of voltage it needs to create the current – or arc – between its electrodes, and then automatically lowers and monitors the voltage to make sure there is the perfect amount to keep the light going. Fluorescent ballasts come in a variety of types to meet the needs…

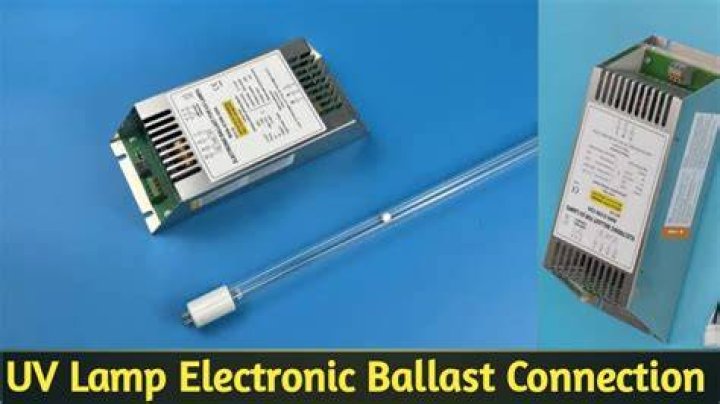

How does an electronic UV sterilizer ballast work?
Electronic UV Sterilizer Ballasts; Lamp Problems. Unlike a magnetic ballast that uses a starter to provide the correct “surge” voltage to light the lamp/bulb, the electronic ballast utilizes this electronic circuitry to provide the correct “surge” voltage to light the lamp/bulb, generally over 350 volts (and often MUCH more for some lamps).
How does a UV lamp start to work?
How does a UV lamp start? UV lamps contain a small amount of mercury, when a high voltage is applied to the electrodes, the starting gas inside the lamp is ionised and the temperature increases, this excites the mercury and creates a high temperature plasma arc which emits UV light.
How does electronic ballast control voltage and current?
This control of voltage and current is done by the control unit of the electronic ballast. In running condition of fluorescent lamp, electronic ballast acts as a dimmer to limit current and voltage. In present days, electronic ballast design is so robust and somewhat complicated to work very smoothly with high leveled controlling ability.
