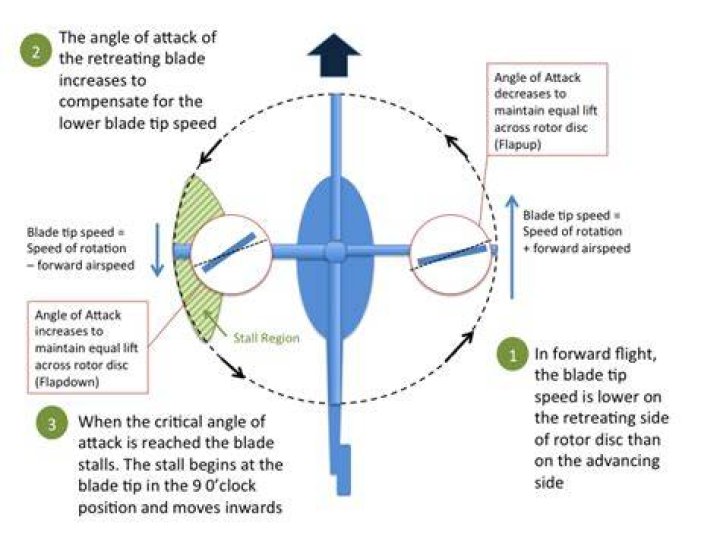

How does retreating blade stall occur?

Retreating blade stall is a hazardous flight condition in helicopters and other rotary wing aircraft, where the retreating rotor blade has a lower relative blade speed, combined with an increased angle of attack, causing a stall and loss of lift.

What are the three warning signs of an impending retreating blade stall?

The major warnings of approaching retreating blade stall conditions are: Abnormal vibration….When operating at high forward airspeeds, the following conditions are most likely to produce blade stall:

• High blade loading (high gross weight)
• Low rotor RPM.
• High density altitude.
• Steep or abrupt turns.
• Turbulent air.

How is blade tip stall prevented?

The results show that stall can effectively be suppressed using higher har- monic blade root pitch at both cruise and high speed flight conditions. The control amplitude was small, less than 1 deg. In a high thrust, low speed flight condition, stall is fairly insensitive to higher harmonic inputs.

What causes helicopter to stall?

As the helicopter flies forward and the blades are rotating, the advancing blade is striking the relative wind at a higher speed than the retreating blade. Any faster and the retreating blade will stall.

What is low RPM blade stall?

It means that if your blades are spinning fast enough, you should be able to fly. But if you lose RPM, there’s a chance that you might drop out of the sky (yes, like a brick) . This is called Blade Stall. Helicopters have low rotor RPM warning systems.

What happens if a helicopter stalls?

If the helicopter engine stops, everything will go quiet in the cockpit, and the machine will yaw violently to one side. When this happens, the pilot needs to instantly lower the collective, taking the pitch off the rotor blades, and initiating a descent.

What are the 5 symptoms of a impending stall?

recitation of the stall warning signs in the order that they occur (Stick back, rising nose, declining airspeed indication, decreasing wind noise, mushy controls, and eventually the pre-stall buffet – six signs that a stall is about to occur).

What corrective action can a pilot take to prevent retreating blade stall?

What corrective action can a pilot take to prevent a retreating blade stall at its onset? A) Reduce collective pitch and decrease rotor RPM. B)…4.8.4.0.5.A.1.

What are the causes of blade coning?

Coning is an upward sweeping angle of the rotor blades as a result of lift and centrifugal force. Centrifugal force is caused by blade rotation. This force pulls the rotor blades horizontally and provides rigidity to the blades. The faster the rotation of the blades, the more centrifugal force.

Can a helicopter stall in a climb?

Yes and No. The definition of a stall is that the airfoil stops generating lift, which happens when the critical angle of attack is reached.

When is a retreating blade stall a dangerous condition?

Retreating blade stall is a hazardous flight condition in helicopters and other rotary wing aircraft, where the rotor blade with the smaller resultant relative wind exceeds the critical angle.

What causes a helicopter rotor blade to stall?

Retreating blade stall is a hazardous flight condition in helicopters and other rotary wing aircraft, where the rotor blade with the smaller resultant relative wind exceeds the critical angle. Any stall is due to an excessive angle of attack.

What happens to a rotor blade when it retreats?

When flapping, a rotor blade will travel upward during its advance, creating a lesser angle of attack (AOA) and therefore lesser lift. When the blade retreats, the blade falls downward again, increasing the AOA and therefore generating greater lift. There are three general designs.

How does dissymmetry cause a helicopter to stall?

When dissymmetry causes the retreating blade to experience less airflow than required to maintain lift, a condition called retreating blade stall can occur. This causes the helicopter to roll to the retreating side and pitch up.
