It’s common to describe household wall receptacles that are wired together using the device terminals as wired in series. But, in fact, all household receptacles are always wired in parallel, and never in series. In a series circuit, current must pass through a load at each device.
How many outlets can you wire in series?
National Electrical Code & Outlets The National Electrical Code (NEC) does not limit the number of outlets per circuit. The NEC only states that a circuit cannot supply more than 80% of the circuit breakers limits. This is so the circuit breaker does not constantly trip during regular use.
Why are outlets never wired in series?
When items are wired in series, the amount of energy going to each one lessens. So… 3 outlets wired in series would mean each outlet would receive a little amount of electrical energy. Loads wired in series have only 1 switch that turns the WHOLE circuit off and turns the WHOLE circuit on.
Why is parallel circuit better than series?
In a series connection, the amount of current flowing through the two appliances is same whereas, in case of a parallel connection, the voltage across each appliance is the same. A parallel circuit can consume more power when compared to a series circuit. At the same time, parallel circuits can be more robust.
Can I daisy-chain electrical outlets?
You can daisy-chain a GFI just like a regular receptacle, with one difference. The incoming wires must connect to the “line” terminals while the outgoing wires must connect to “load.”
What is daisy-chain wiring?
In electrical and electronic engineering, a daisy chain is a wiring scheme in which multiple devices are wired together in sequence or in a ring, similar to a garland of daisy flowers. Daisy chains may be used for power, analog signals, digital data, or a combination thereof.
When do you wire electrical outlets in series?
A common misconception when doing receptacle wiring is that, when you daisy-chain them in a circuit, you’re wiring them in series. You’re actually wiring them in parallel, and that’s a whole different thing. Each device in a parallel circuit receives electricity independently of the others, so if one of them fails, the others stay on.
How to wire multiple outlets in a circuit?

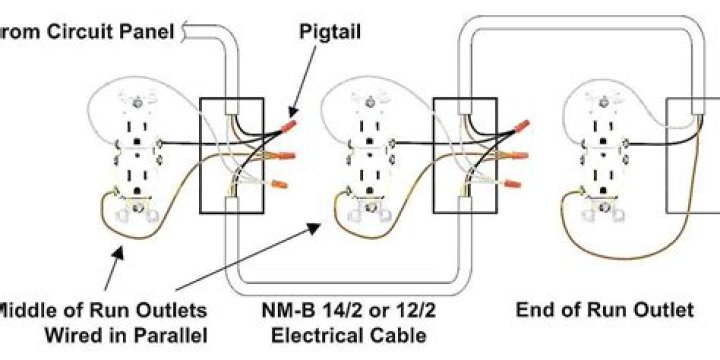

This page contains several diagrams for 2 or more receptacle outlets in one circuit. Wiring for multiple ground fault circuit interrupters (gfci) and standard duplex receptacles are included with protected and non-protected arrangements. Wiring Multiple Outlets in a Series
Where do the ground wires go on an electrical outlet?
The ground wires go on the ground terminal, just as they do for a conventional outlet. Because the purpose of a switch is to interrupt the hot leg of the circuit when it’s off, it has to be wired in series, and for this reason, it has only brass terminals (and a ground).
Do you wire receptacles in series or parallel?
A common misconception when doing receptacle wiring is that, when you daisy-chain them in a circuit, you’re wiring them in series. You’re actually wiring them in parallel, and that’s a whole different thing.
