The upper sideband is suitable for frequencies higher than 10 MHz. However, the lower sideband is suitable for frequencies lower than 10 MHz. People often consider the purpose or benefits of upper or lower sideband Wi-Fi. With the sideband configuration in Wi-Fi, the transmission of the signals is improved.

What is the difference between upper sideband and lower sideband?

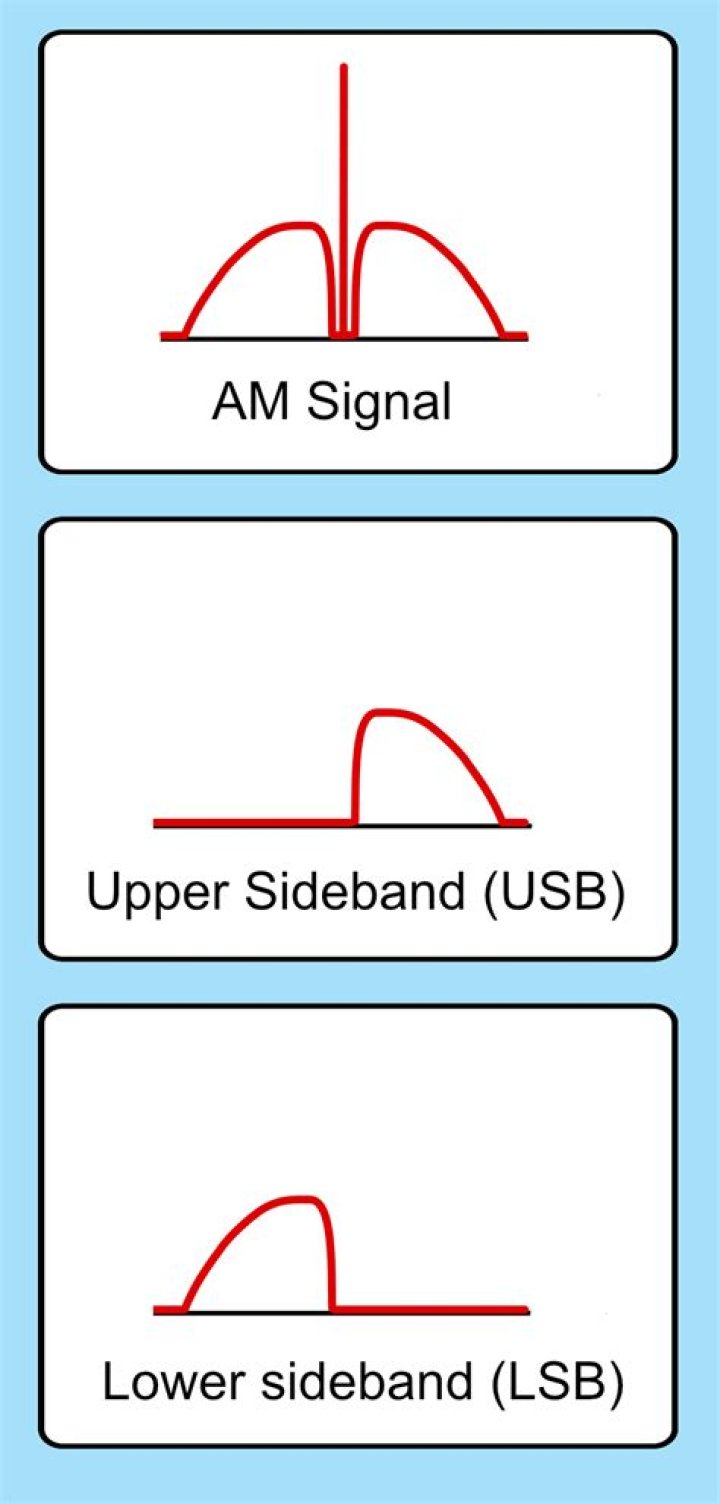

In radio communications, a sideband is a band of frequencies higher than or lower than the carrier frequency, that are the result of the modulation process. The signal components above the carrier frequency constitute the upper sideband (USB), and those below the carrier frequency constitute the lower sideband (LSB).

When should I use USB and LSB?

When single-sideband is used in amateur radio voice communications, it is common practice that for frequencies below 10 MHz, lower sideband (LSB) is used and for frequencies of 10 MHz and above, upper sideband (USB) is used.

Is 10 meters upper or lower sideband?

Lower sideband (LSB)–The common single-sideband operating mode on the 40, 80 and 160-meter amateur bands. Upper sideband (USB)–The common single-sideband operating mode on the 20, 17, 15, 12 and 10-meter HF amateur bands, and all the VHF and UHF bands.

What is the best channel for 5GHz?

While it is clear that 36, 40, 44, 48 is the best wifi channels for 5ghz but there are issues of congestion as well. If there are many devices having the same channel around your premise then it would interfere and slow down your router. As 5GHz routers lack strong signal penetration, it can pose another trouble.

Is 20 MHz better than 40MHz?

A 20MHz channel width is wide enough to span one channel. In crowded areas with a lot of frequency noise and interference, a single 20MHz channel will be more stable. 40MHz channel width allows for greater speed and faster transfer rates but it doesn’t perform as well in crowded areas.

What is the main disadvantage of SSB?

The disadvantage of SSB modulation are : The generation and reception of SSB signal is complicated ( which we will discuss later in our following post ). The SSB transmitter and receiver need to have an excellent frequency stability .

Why is SSB not used for broadcasting?

When carrier is shifted to bandpass, this one sided bandwidth becomes 9 MHz. This is nearly ten times as large as the total bandwidth occupied by all the channels of the AM radio. Use of SSB modulation would cut this in half but SSB is not used for video signals because of the complexity of the SSB receivers.

Does CB use USB or LSB?

There are 3 CB modes. Regular CB (most commonly used, USB (upper side band) and LSB (lower side band).

Is 30 meters upper or lower sideband?

You may now be asking, “Which sideband is used with SSB mode?” The convention used by hams is that bands above the 30-meter band (frequencies greater than 10 MHz), including all VHF and UHF bands, use the upper sideband (USB) – the band of frequencies adjacent to, and higher than, the carrier frequency.

Which is the higher sideband or lower sideband?

In electronic signal transmission, a sideband is the portion of a modulated carrier wave that is either above or below the basic ( baseband ) signal. The portion above the baseband signal is the upper sideband ; the portion below is the lower sideband . In regular amplitude modulation ( AM ) transmission, both sidebands are used to carry a message.

When to use lower side band or upper side band for PSK31?

Use upper side band below 10MHz Most amateurs will use Upper Side Band (USB) for PSK31 QSOs even when they are on lower frequencies (below 10MHz) which usually require the use of Lower Side Band (LSB).

Which is lower sideband USB or upper sideband LSB?

Lower sideband (LSB)–The common single-sideband operating mode on the 40, 80 and 160-meter amateur bands. Upper sideband (USB)–The common single-sideband operating mode on the 20, 17, 15, 12 and 10-meter HF amateur bands, and all the VHF and UHF bands. It’s a historical oddity.

Can a single sideband be used on a HF radio?

Nowadays, most HF amateur operation is single sideband (see below). That means your radio will use either the upper sideband (USB) or the lower sideband (LSB) for a particular contact. You can legally use either on any frequency band.
