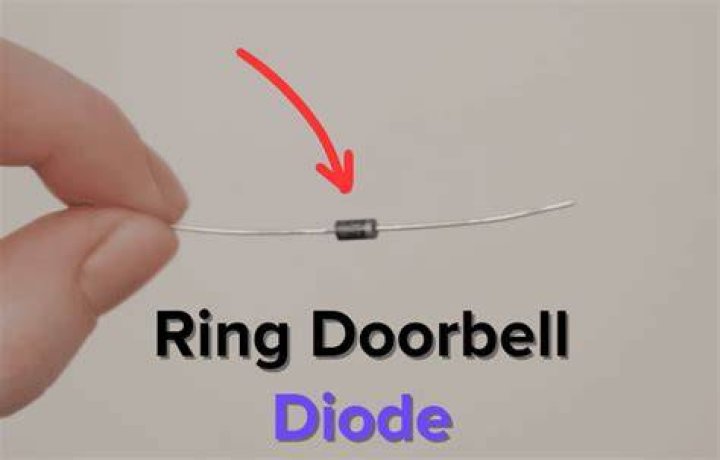

The diode is used in parallel with the switch to act as a half wave rectifier as part of the low voltage DC power supply for the electronic doorbell. The low voltage DC supply allows the chime to continue even after the button is released.
Do doorbell buttons come with Diodes?
Our doorbells are recommended for use with up to 24-Volt transformers. If they are needed, diodes come with the chimes, not the button. If you have an older chime, it may need a diode. The diode gets installed on the two screws on the button along with the wires.
Where does diode go on ring doorbell?
Install the diode directly on the screws on the back of your Ring Video Doorbell 2 unit. Connect your existing wiring to the screws on the back of your Ring Video Doorbell 2 unit, making sure that the marking on the diode points to the wire that leads to your bell. Restore power at the breaker.
Do I need a diode for my doorbell?
Many electronic chimes require a diode across the doorbell button terminals (which is supplied when you purchase the doorbell). This is because these chimes need power from the button to the chime to continue longer than a brief button push, which is what the diode does…
What is 1N4001 diode used for?
The 1N400x (or 1N4001 or 1N4000) series is a family of popular one-ampere general-purpose silicon rectifier diodes commonly used in AC adapters for common household appliances. Its blocking voltage varies from 50 volts (1N4001) to 1000 volts (1N4007).
Do I need a diode for ring doorbell 3?
The Ring Video Doorbell 3 and Ring Video Doorbell 3 Plus have a built-in diode and do not need an external diode installed. Also the Ring Video Doorbell (2nd generation) does not need an external diode.
Where do you put the diode on a doorbell?
Turn off the power to the doorbell. Loosen the terminal screws that hold the diode in place inside the doorbell housing. The terminal screws are located on the opposite side of the housing from the doorbell, sitting slightly wider than the doorbell. Install the diode into position behind the doorbell button.
Can a Ring doorbell be used with a mechanical bell?
The diode included with your Ring Video Doorbell is an important item used to connect your Video Doorbell to an already existing doorbell’s digital bell. It should not be used with a mechanical bell or if you’re not connecting the Ring Doorbell to a bell.
Why does my push button doorbell stop ringing?
If the doorbell stops functioning correctly, one problem may be that the diode is damaged. The diode is a component that allows the doorbell to continue ringing after the button has been released. Turn off the power to the circuit at the main electrical box.
How does a chime work on a doorbell?
People also ask, how does a doorbell chime work? A simple chime doorbell uses the magnetic field created by the electromagnet to move a magnetic piston to strike two tone bars. When the button is pressed, the circuit closes and the electromagnet moves a contact arm. When the contact arm moves, it interrupts the circuit and the electromagnet stops.
